DIN-E 512 / 1024 / 2048

ETHERNET TO DMX STAND ALONE INTERFACE​

ETHERNET TO DMX STAND ALONE INTERFACE​

DIN-E is the ideal DMX stand alone interface for installation in electrical DIN cabinets with DIN RAILS.
The USB to DMX stand alone Ethernet DMX device can control from 512 to 2048 channels on 1, 2 or 4 DMX universes.
Featuring a robust Stand Alone mode and a wide range of trigger possibilities (RS232, Contacts, Clock, NODE x4 ports, Master/Slave on LAN), this competent device is a smart solution for easy and quick architectural installations and large integration projects.

DMX 512 / 1024 / 2048

Up to 2024 (4x512) DMX channels control per interface. Live / Stand Alone / Split / Merge / Trigger / Record

Ethernet LAN / WLAN

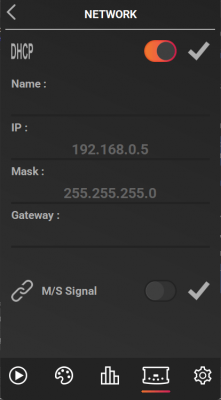

Easy and fast communication anywhere on Local Network with DHCP or static IP addressing.
Ethernet jack for wireless control over WiFi via routers

x10 ZONES

Play up to 10 different scenes/sequences simultaneously in Stand Alone mode

MICRO SD

Micro SD Card slot (Class 10, FAT format, up to 256 GB) or Internal memory with no SD card required)

RS232 In/Out

RS232 In/Out protocole and commands complete the trigger capacities (Start/Stop, Zone, Dimmer, Speed, ...)

x12 SMART CONTACTS

Trigger action with up to 12 Dry Contacts on 3~5V (On, On/Off, Release, Restart, Scene Priority)

INTERNAL CLOCK

Time Clock setting and calendar adjustable in Stand Alone for each scene (Hour, Day, Week, Month, Year)

Compatible Software

The new DIN-E is compatible with all Chromateq software, it can be integrated into scalable control systems designed for live performance or fixed installation, or deployed individually without a computer as an elegantly simple but sophisticated standalone control solution.

PIXXEM

LED PLAYER

PRO DMX

STUDIO DMX

All our Lighting Management Software are Free and require a Chromateq™ Device or Interface to transform your computer into an impressively adaptable and effective DMX Controller.

Main Features

Hardware & DMX (Software & Live)

DIN-E 512

DIN-E 1024

DIN-E 2048

LED PLAYER / PRO DMX / PIXXEM (In/Out)

512 (1U. Split x4)

1024 (2x512, 2U. Split x2)

2048 / 4x512 (4U.)

Web Remote over internet

No

Yes (Free)

Ethernet (10 Mb/s)

Yes (LAN, Internet, compatible with Wifi routers)

RDM (Remote Device Management, Bi-directional DMX communication)

Yes, with Pro DMX 2 only

USB-C

USB-C

Max Interface Connected

12 (USB - 24 DMX) / 128 (Ethernet - 512 DMX)

Connectors (RJ45 + 2x9 Pins + 2x6 Pins T. Block)

Yes

Dimensions (mm / in)

H: 110 (4.33), W: 100 (3.94), D: 60 (2.36)

Weight / Operating Temperature / Certification

0.2 Kg (0.44 lb) / -40 to +85 C° / CE, RoHS

Stand Alone

DMX Out (16-bit channels)

512 (1U. Split x4)

1024 (2x512, 2U. Split x2)

2048 / 4x512 (4U.)

Art-Net / sACN (requires a Class 10 microSD)

2x512 (2U.)

4x512 (4U.)

8x512 (8U.)

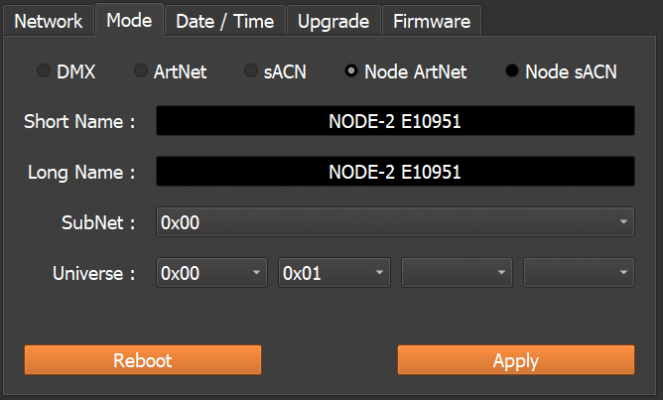

NODE (Art-Net & sACN to DMX decoder, DHCP, IP)

2x512 (2U. Split x2)

4x512 (4U.)

Zone (Scene play a time, Stand Alone)

1

10

Wi-Light 2 APP Configuration

Yes (LAN)

Yes (LAN, Web, Internet)

MASTER / SLAVE Synchro (Wired + Ethernet)

Yes, (32 max wired / 128 max Ethernet)

Power

Input: 5~24V DC, 0.2A / Output: 5V DC

Scene options

Default start scene, Automatic Scene Recovery if off, Scene priority, Clock

Memory (Stand Alone)

Memory Step capacity​

10K ~ 50K

5K ~20K

2K ~10K

Max Scene capacity​

512

10x512

10x512

Internal memory (No SD required)

Yes, 8Mb

SD Card expansion slot (Class 10 Micro SD)

Yes (FAT format, max. 256 GB, Class 10, inside housing)

Triggers (Stand Alone)

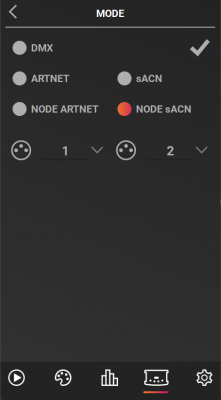

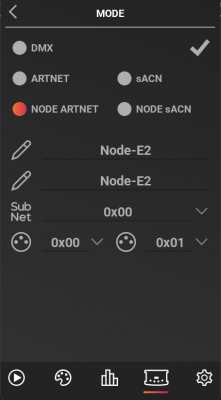

Wi-Light 2 APP, UDP, JSON (requires a WIFI router)

Yes (LAN)

Yes (LAN, Web, Internet)

RS232 In/out (Stand Alone + Live)

Yes (triggers + commands)

UDP / Ethernet triggers and commands (from SDK)

Yes (for 3rd part software or device)

Smart Contacts (on, on/off, release, start, priority)

12 (31 contacts max)

Commands from the Contacts

Yes (speed, scene, dimmer, zone, black out, pause)

RTC (Built in Clock and Calendar)

Yes (with Hour, Day, Week, Month, Year)

DMX In Trigger & Merge DMX

Yes (signal from other DMX devices)

Master/Slave Port or Ethernet

Yes (x32 max wired, x128 max Ethernet)

Infrared remote (zones, dimmer, speed, colours)

Optional (requires the IR Kit)

Light Intensity sensor

Optional (requires the IR Kit)

Software Options

Software

LED PLAYER

2x512 per interface, up to 64x512 DMX Outputs

PRO DMX

30 mns Audio and Video Timeline

24h Timeline

PIXXEM

Up to 255×512 DMX Outputs

STUDIO DMX

3D viewer in real time (Full mode)

WI-LIGHT 2 - APP

Software control from LAN

2022 Chromateq software

Yes

Worldwide Technical Support

Yes, English, French, Chinese

Art-Net, sACN, DVI, Outputs

ART-NET, sACN Output (LED Player, Pro DMX)

512

2x512

16x512

ART-NET, sACN Input​

No

Yes

ART-NET, sACN Output (PIXXEM)

4x512

8x512

64x512

DVI supported resolution (PIXXEM)

64×64 / 4 096 pixels

128×128 / 16 384 pixels

1024×768 / 78 6432 px

Triggers and additional options

MTC, MIDI TIME CODE

No

Yes

PC Clock (Calendar, Time)

No

Yes

Multiple Timeline and Import

No

Yes

Timeline Live Record

No

Yes

MIDI, RS232, DMX IN, UDP, Keyboard, Hyperlinks

Yes

MIDI control, Audio BEAT, BPM, WI-LIGHT 2

Yes

User Interface customization

Yes

Support and Download

Product Brochure

Description, main features and specifications

Coming
Soon

Instruction Manual

Complete technical documentation (Datasheet)

Product pictures

High-resolution DIN-E Chromateq product images for commercial use, promotion and marketing

Software Downloads

Windows, Mac OS, Linux, and Raspberry versions and additional support (Fixture Profiles, drivers)

Documentation

All available commercial files (Brochure, Flyer, Certificate of conformity, poster, wiring schematic by Language EN, FR, CN)

Device Data-sheet

All interface datasheets and complete technical documentation by language (EN,FR, CN)
