NODE-2

CONVERT ART-NET AND sACN TO DMX

If you request long distance access using a standard communication, the NODE-2 is a simple solution to implement on your projects.

NODE-2 is compatible with any standard data source from the professional lighting industry such as Art-Net or sACN from both a computer and a DMX desk. The NODE-2 converts and decode all Art-Net and sACN signals to DMX 512 signal on 2 DMX lines. It support Unicast, broadcast, Fix IP and DHCP configuration on UDP and is configurable with our DEVICETOOL, software or a web browser (very soon).

The device is configurable by USB and Ethernet thanks to the software, the DEVICETOOL, the Wi-Light 2 APP or a web browser.

Ethernet LAN / WLAN

Easy and fast communication anywhere on Local Network with DHCP or static IP addressing
RJ45 port for wireless control over WiFi via routers

Art-Net, sACN to DMX NODE

Easy Art-Net/sACN-to-DMX decoding/conversion/node functionality and compatible with any data source

WIN and MAC easy configuration

Simply connect your NODE-2 to the computer’s USB port to set it up with the DEVICETOOL or with the Wi-Light 2 app when connected to a WIFI access point.

2 DMX Universes output

2 DMX OUT ports ruggedly built into a new sleek stackable modular aluminium design

International Warranty

2 year warranty

NODE-2 Wiring diagram

Main Features

HARDWARE

NODE-2

DMX output

1024 (2x512)

Ethernet (10 Mb/s)

Yes (LAN, compatible with Wifi router)

Supported Input Data

Art-Net, sACN, 2 Universes (2x512)

Inputs

USB-C, RJ45 Ethernet

Supported Network and IP Modes

UDP, Broadcast, Unicast, Fix IP, DHCP

Button

NODE mode selection (hold 5s)

IP Rating

IP22

International Warranty

2 Years

Power

5V. DC, 0.25A input by USB-C, 1.5W

Dimensions (mm / in)

H: 90 (3.54), W: 80 (3.15), D: 45 (1.77)

Weight / Operating Temperature / Certification

0.19 Kg (0.42 lb) / -40 to +85 C° / CE, RoHS

Wi-Light 2 APP Configuration

Yes (LAN), for IP configuration

Configuration Options

DEVICETOOL / WI-LIGHT 2 / SOFTWARE

NODE-2

DHCP / Fix IP

Yes

IP

Yes

Subnet Mask

Yes

Modes

Art-Net, sACN

Name

Yes

Short name, Long name

Yes

Subnet, Universe

Yes

DeviceTool configuration

USB-C connected, you can easily configure your NODE-2 in the right mode, DHCP, Fix IP, Art-Net or sACN with the DEVICETOOL.

software configuration

Chromateq software are able to configure the NODE-2 easily from the menu “Tools/Options” and Device page.

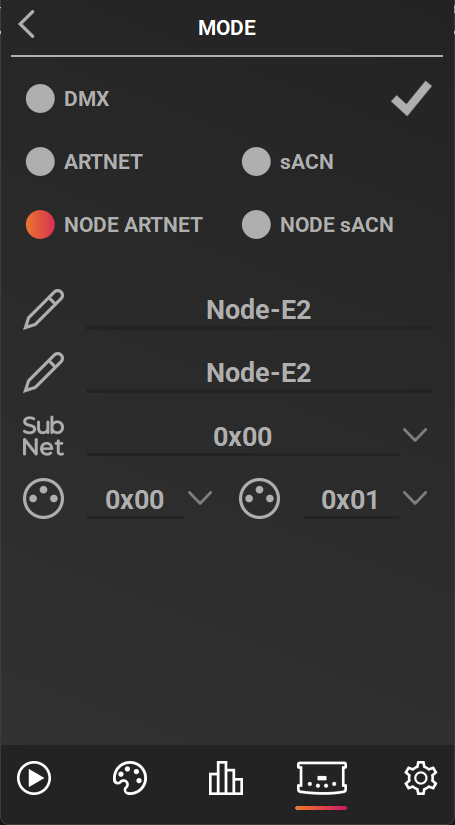

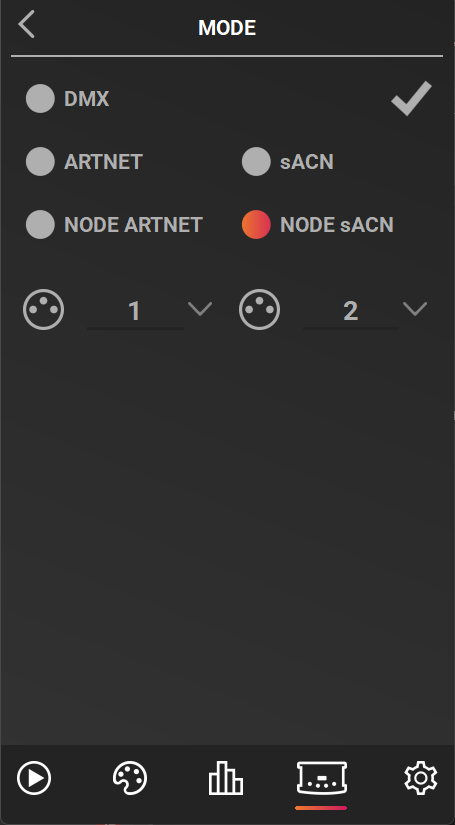

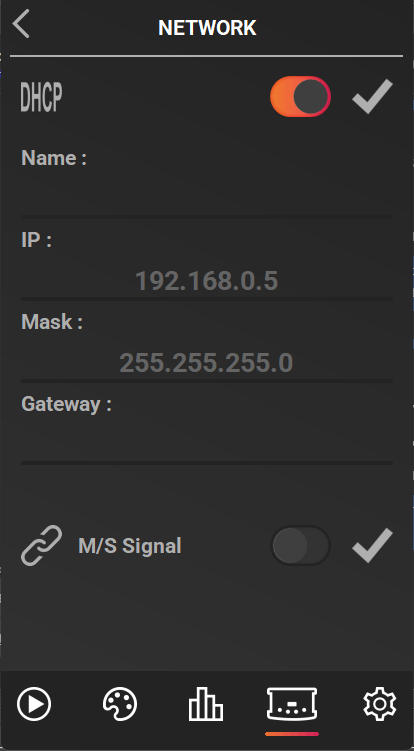

WI-LIGHT 2 APP configuration

At any time on WIFI connection, you can easily connect to your NODE-2 with the Wi-Light2 app and change the parameters.

WEB BROWSER configuration

Coming soon…
